The A/B/H-Series Systems
To find the correct system for your vessel, we recommend that you look at your hourly flowrate and add 20%.
Scroll down to find mobile solutions
40 Liters
WP2-H4-40
Technical Data
Filtered Oil Flow (l/h): 40-60
Viscosity (cSt) 0-220
Power Suppl (Vac-Hz): 1×230, 3×400/440 or 3×690-50/60
Max Power Consumption (W): 340+1600
Dimensions HxWxD (mm): 775x635x435
Weight (kg): 70
Materials: AISI 304 Stainless
Filter Cannister (liter): 1×8
Alarm: Option
Preheater: Standard 1600W mounted on system
100 Liters
WP2-H4-100
Technical Data
Filtered Oil Flow (l/h): 100-120
Viscosity (cSt) 0-220
Power Suppl (Vac-Hz): 1×230, 3×400/440 or 3×690-50/60
Max Power Consumption (W): 370+1600
Dimensions HxWxD (mm): 775x635x435
Weight (kg): 70
Materials: AISI 304 Stainless
Filter Cannister (liter): 1×8
Alarm: Option
Preheater: Standard 1600W mounted on system
200 Liters
WP2-A4-200
Technical Data
Filtered Oil Flow (l/h): 200-240
Viscosity (cSt) 0-220
Power Suppl (Vac-Hz): 3×400/440 or 3×690-50/60
Max Power Consumption (W): 570
Dimensions HxWxD (mm): 775x635x435
Weight (kg): 71
Materials: AISI 304 Stainless
Filter Cannister (liter): 1×8
Alarm: Option
Preheater: Option
400 Liters
WP2-A4-400
Technical Data
Filtered Oil Flow (l/h): 400-480
Viscosity (cSt) 0-220
Power Suppl (Vac-Hz): 3×400/440 or 3×690-50/60
Max Power Consumption (W): 1140
Dimensions HxWxD (mm): 775x820x435
Weight (kg): 110
Materials: AISI 304 Stainless
Filter Cannister (liter): 2×8
Alarm: Option
Preheater: Option
30 Liters
WP1-B2-30
Technical Data
Filtered Oil Flow (l/h): 30-50
Viscosity (cSt) 0-220
Power Suppl (Vac-Hz): 1×110, 1×230-50/60
Max Power Consumption (W): 170
Dimensions HxWxD (mm): 457x183x294
Weight (kg): 9
Materials: AISI 304 Stainless
Filter Cannister (liter): 1×3
Alarm: Option
100 Liters
WP1-B1-100
Technical Data
Filtered Oil Flow (l/h): 100-120
Viscosity (cSt) 0-220
Power Suppl (Vac-Hz): 1×230, 3×400/440 or 3×690-50/60
Max Power Consumption (W): 370
Dimensions HxWxD (mm): 423x426x280
Weight (kg): 19
Materials: AISI 304 Stainless
Filter Cannister (liter): 1×8
Alarm: Option
200 Liters
WP1-B2-200
Technical Data
Filtered Oil Flow (l/h): 200-240
Viscosity (cSt) 0-220
Power Suppl (Vac-Hz): 1×230, 3×400/440 or 3×690-50/60
Max Power Consumption (W): 370
Dimensions HxWxD (mm): 423x426x280
Weight (kg): 19
Materials: AISI 304 Stainless
Filter Cannister (liter): 1×8
Alarm: Option
400 Liters
WP1-B2-400
Technical Data
Filtered Oil Flow (l/h): 400-480
Viscosity (cSt) 0-220
Power Suppl (Vac-Hz): 1×230, 3×400/440 or 3×690-50/60
Max Power Consumption (W): 790
Dimensions HxWxD (mm): 532x774x320
Weight (kg): 42
Materials: AISI 304 Stainless
Filter Cannister (liter): 2×8
Alarm: Option
“This GreenOil system is very compact and moveable. Perfect for small compartments. Good efficiency, in just 2-3 days in service, the oil was back to normal condition. The system is very easy to operate, simple to clean and maintain. We are happy about the performance. We would certainly recommend this system!”

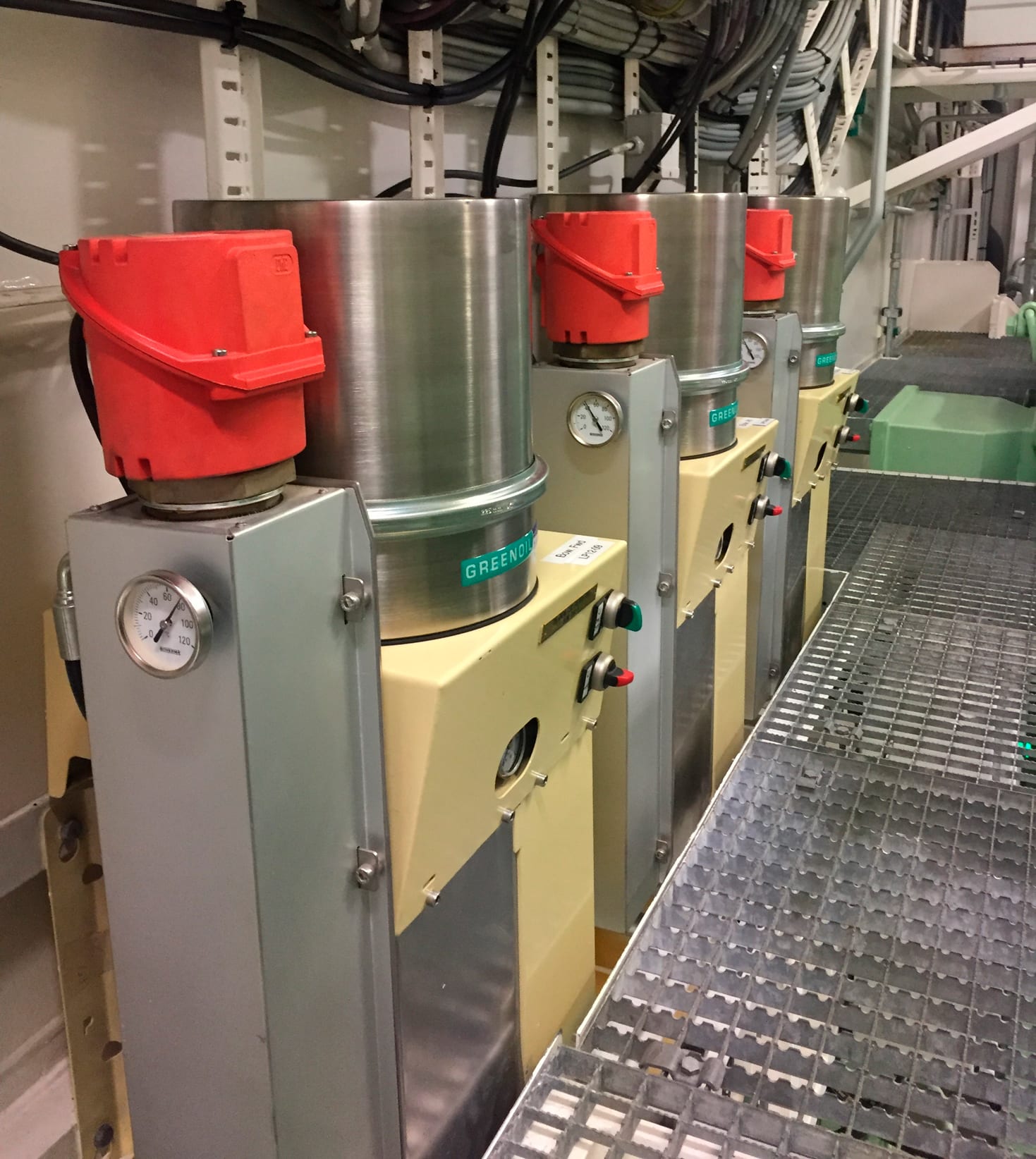

Three WP1-H1-40 installed onboard Esvagt Fraude
Filtration for Propulsion, Hydraulics and Gearboxes
Performance to rely on
GreenOil offline oil filtration system for thrusters, gearboxes, stern tubes, hydraulics and other oil systems, gives you quality oil filtration and keeps your machinery healthy, and is even suitable for EAL (Environmental Acceptable Lubricants) oil.
The benefits of proper oil filtration are many, but the most important ones are as following:
- Extended lifetime of the oil
- Components lifetime prolonged by 5-10 times
- Improved oil quality
The system is designed, so both large and small particles are filtrated, before the unique patented water separator removes free, emulsified, and bound water, in order to remove any water contamination. Once the water is separated, clean oil is let out.
Results have shown cleanliness levels down to NAS Code 02 (NAS 1638) and water down to 30ppm. Scroll down to find the right solution for your vessel.
The Technology Behind the Solution
Thrusters, gearboxes, stern tubes, hydraulics and other oil systems all require dry oil for long life service. Water ingress or contamination is a constant source of unnecessary oil changes, corrosion, and break downs – quality oil filtration is the key. The GreenOil solution is offered as both a retrofit and a newbuild, ensuring clean and dry oil on any type of vessel, giving you performance to rely on.
Through proper oil maintenance, lower lifecycle costs are achieved through high operational reliability and durability. GreenOil systems keeps your machinery healthy with low investment costs. Additionally, the offline oil filtration systems are easy to maintain, freeing up your crew to work elsewhere.
The Mobile Units
To find the correct system for your vessel, we recommend that you look at your hourly flowrate and add 20%.
40 Liters
WP2-A3-40-MOB
Technical Data
Filtered Oil Flow (l/h): 40-60
Viscosity (cSt) 0-460
Power Suppl (Vac-Hz): 1×110 or 1×230 – 50/60
Max Power Consumption (W): 340
Dimensions HxWxD (mm): 1100x600x660
Weight (kg): 57
Materials: AISI 304 Stainless
Filter Cannister (liter): 1×8
Preheater: Option
100 Liters
WP2-A3-100-MOB
Technical Data
Filtered Oil Flow (l/h): 100-120
Viscosity (cSt) 0-460
Power Suppl (Vac-Hz): 1×110 or 1×230 – 50/60
Max Power Consumption (W): 370
Dimensions HxWxD (mm): 1100x600x660
Weight (kg): 57
Materials: AISI 304 Stainless
Filter Cannister (liter): 1×8
Preheater: Option
40 Liters
WP2-H3-40-MOB
Technical Data
Filtered Oil Flow (l/h): 40-60
Viscosity (cSt) 0-460
Power Suppl (Vac-Hz): 1×230 – 50/60
Max Power Consumption (W): 370+1600
Dimensions HxWxD (mm): 1100x600x660
Weight (kg): 63
Materials: AISI 304 Stainless
Filter Cannister (liter): 1×8
Preheater: Standard
100 Liters
WP2-H3-100
Technical Data
Filtered Oil Flow (l/h): 100-120
Viscosity (cSt) 0-460
Power Suppl (Vac-Hz): 1×230 – 50/60
Max Power Consumption (W): 370+1600
Dimensions HxWxD (mm): 1100x600x660
Weight (kg): 63
Materials: AISI 304 Stainless
Filter Cannister (liter): 1×8
Preheater: Standard
WANT TO HEAR MORE ABOUT WHAT WE CAN DO FOR YOUR COMPANY?
Send your contact details and we will get back to you as soon as possible.
“GreenOil is an innovative company, passioned and specialized in oil filtration. Our patented solutions are well proven, and are recognized as efficient, economical and sustainable solutions, which have resulted in satisfied and loyal customers.“
